You can use this mount to make the best DIY phone stand!

Includes:

• Five (5) 3D printing files in STL and 3MF format

• Fusion 360 design file

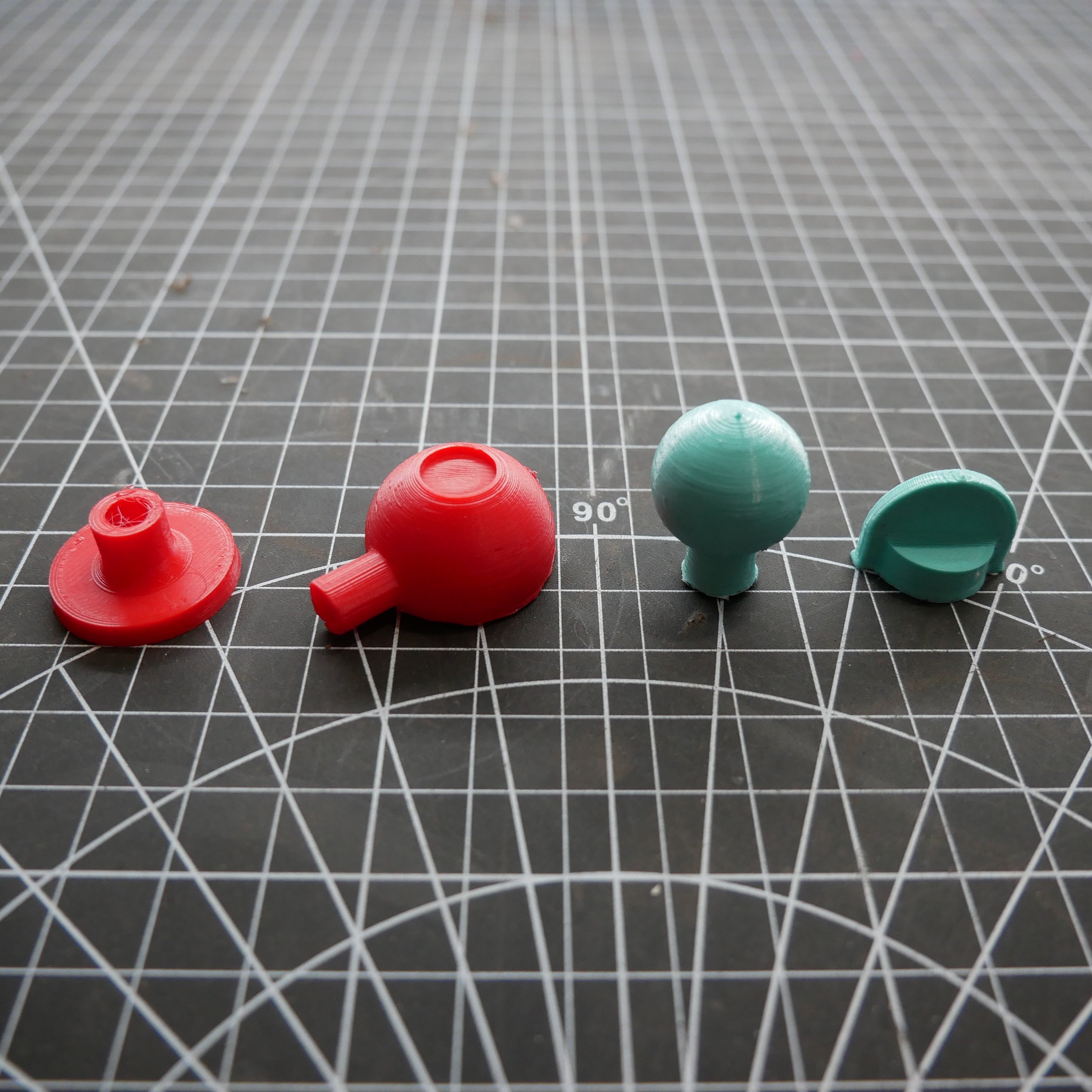

The ball mounts to a 10-32 screw, and the shell accommodates a 1/4”-20 screw to mount a camera or tripod accessories.

The shell and camera mount can either be printed as a single piece (“shell single piece”) or as 2 pieces (“shell body + camera mount”) and glued together. The single piece version is stronger, but requires more support material.

Recommended print settings:

• PLA

• 0.15mm layer height

• 3 perimeters

• 15% infill

• Use a brim when printing the “shell” and “ball” files.

• Use support material on the build plate when printing the “shell” and “knob.”

• Use support material everywhere when printing “shell single piece”.

To make the phone stand, you will also need:

• (1) x 2” spring clamp

• (1) x phone clamp with 1/4-20” female threads (tripod mountable)

• (2) x 10-32 x 1/2” machine screws

• (2) x #10 washers

• (1) x 1/4”-20 bolt or threaded rod, at least 1/2” long

• CA glue

• Activator (optional)

For assembly details, watch this video!
